OmniTrader Chart Templates Download
  • Chart templates provide set ups to use along with your strategy.
  • With OmniTrader/VisualTrader closed save the file below (by clicking on it) and saving them in the Nirvana directory on your C Drive as follows.

save all templates in directory        C:\program files\nirvana\OT 20XX\chart templates

System Templates
OmniTrader/VisualTrader comes with several standard chart tempates which you should not change, always make a copy and then modify as required

Trending   [file name = trending.otd]
Standard    [file name = standard.otd]
Swing         [file name = swing.otd]
Reversal     [file name = reversal.otd]

Samples
The following are modified templates - if you would like to use them - download these - they can be modified further as required

Use this if you have purchased Turtle
Turtle chart template   [file name = turtle.otd]

Use this if you have purchased Woodie
Woodie chart template   [file name = woodie.otd]

Use this if you have purchased Wave Trader
Wave Trader chart template   [file name = wave trader.otd]

Use this if you have purchased Wave trader and Guppy-Darvas combo
Guppy-Darvas-Wave chart template   [file name = guppy-darvas-wave.otd]

Use this if you want a general purpose MACD and RSI indicator - note this is similar to the Swing Template
MACD chart template   [file name = macd.otd]

Use this if you have purchased Guppy-Darvas module
Guppy-Darvas chart template   [file name = guppy-darvas.otd]

Use this to show a 2 moving average system within a chart
MA Cross Over Chart Template [file name =MA CrossOver.otd]
Example of How to create a template
What to do with the templates

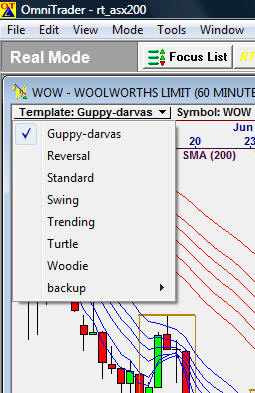

  • Now open up OmniTrader and select the chart template from the drop down box - the example below is for Guppy-Darvas - you may not have all the templates shown on this example.
  • You need to select a template for each focus list and you should use the template to match your strategy - these can be switched at any time

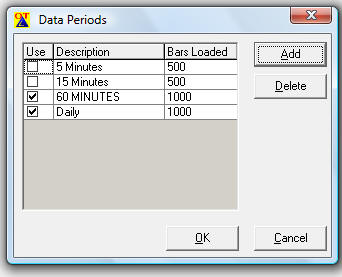

  • You also need to ensure that you set up the voting (analysis)  by going "edit,  data periods" to vote the strategy - unless you are trading 5 and 15 minutes these do not need to be selected. Bars should be a minimum of 500

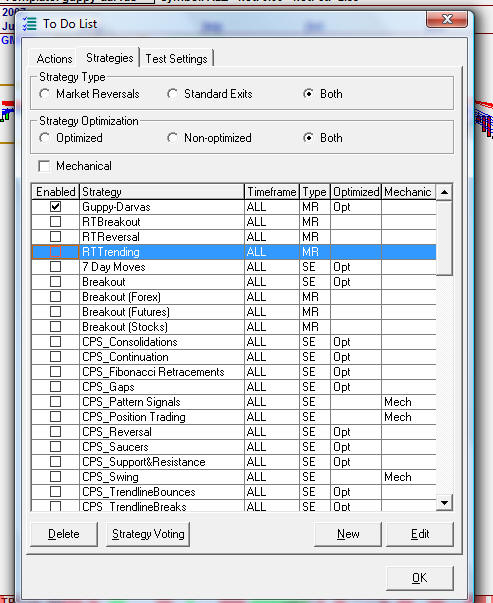

  • Also make sure you "activate the strategies" to match the profile you want to see, go Edit, Trading Strategies - in this example we want Guppy-Darvas - it is often best to limit the number of strategies in any focus list so you understand what you are testing for. Other common strategies you may select are Trending (stocks), Breakout (stocks)   Click here to learn more about which strategies to select
